| ::: Warping M/C(정경기, 整經機) ::: |
|
- Control and speed control device
- Size Beam : 390X250mm, 450X250mm,
- Demension : W(970mm)×H(1,000mm)×L(1,200mm)
- Motor : 2HP
- R. P. M : 0 ~ 1,000 |
| |
| ::: Rubber feeder(고무사 중간기, 自動送膠) ::: |
 |
ㆍBrake attached(브레이크 부착)
ㆍSpeed Control(속도조절) |
| |
| ::: Beams(비임) ::: |
 |
Beams(비임).
Diameter(지름) |
Width(폭) |
390 |
250mm |
| 450 |
250mm |
| 600 |
500mm |
| 700 |
500mm |
|
| |
| ::: Creel Stand(크릴 스탠드) ::: |
 |
Creel Stand(크릴 스탠드)
Installation of Loom(일반직기 설치, 高速織帶機 設置)
|
|
W(가로) |
L(길이) |
H(높이) |
128PIN(추) |
1,300 |
1,970 |
2,010 |
256PIN(추) |
1,300 |
3,940 |
2,010 |
|
| |

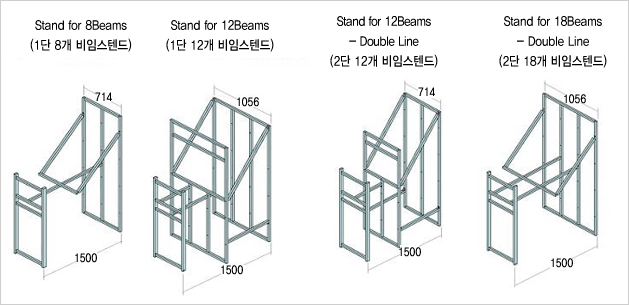

| ::: 빔스텐드 ::: |
|
| |

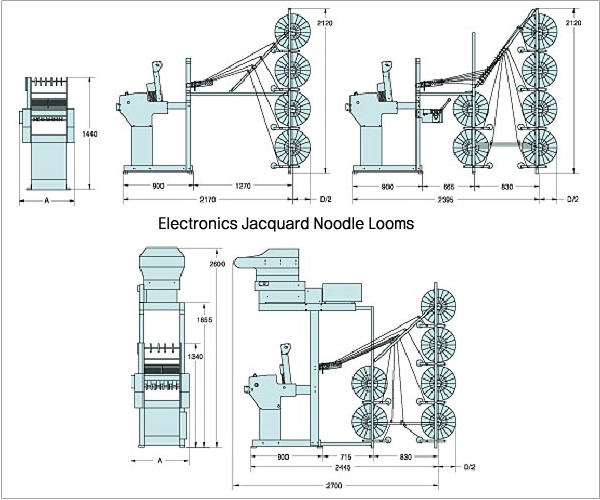

| ::: Installation of Loom(일반직기 설치, 高速織帶機 設置) ::: |
 |
A |
860mm=2/150, 4/75, 6/50, 8/30 Looms |
| 740mm=2/100(HW), 2/75(HW), 4/50, 6/30 Looms |
Electronics Jacquard Needle Loom Weight |
4/50 320 Hook = 620~650kg |
| 6/30 160 Hook = 530~560kg |
|
| |
 |
| |
|
|
